SPECIFICATIONS
Accessories Type: HDD Adapter
Brand Name: BitFunx
Choice: yes
Color: Purple
Compatible Brand/Model: Sony
Compatible Sony Model: playstation2
Electric: No
Function: Upgrade Board IDE to SATA
Hign-concerned Chemical: None
Model Number: SATA upgrade kit for ps2 original network adapter FAT V2.0
Origin: Mainland China
Size: 6.8*2.2*1 CM
Suit for: For Original SONY PS2 IDE network adapter
With USB: NO
semi_Choice: yes

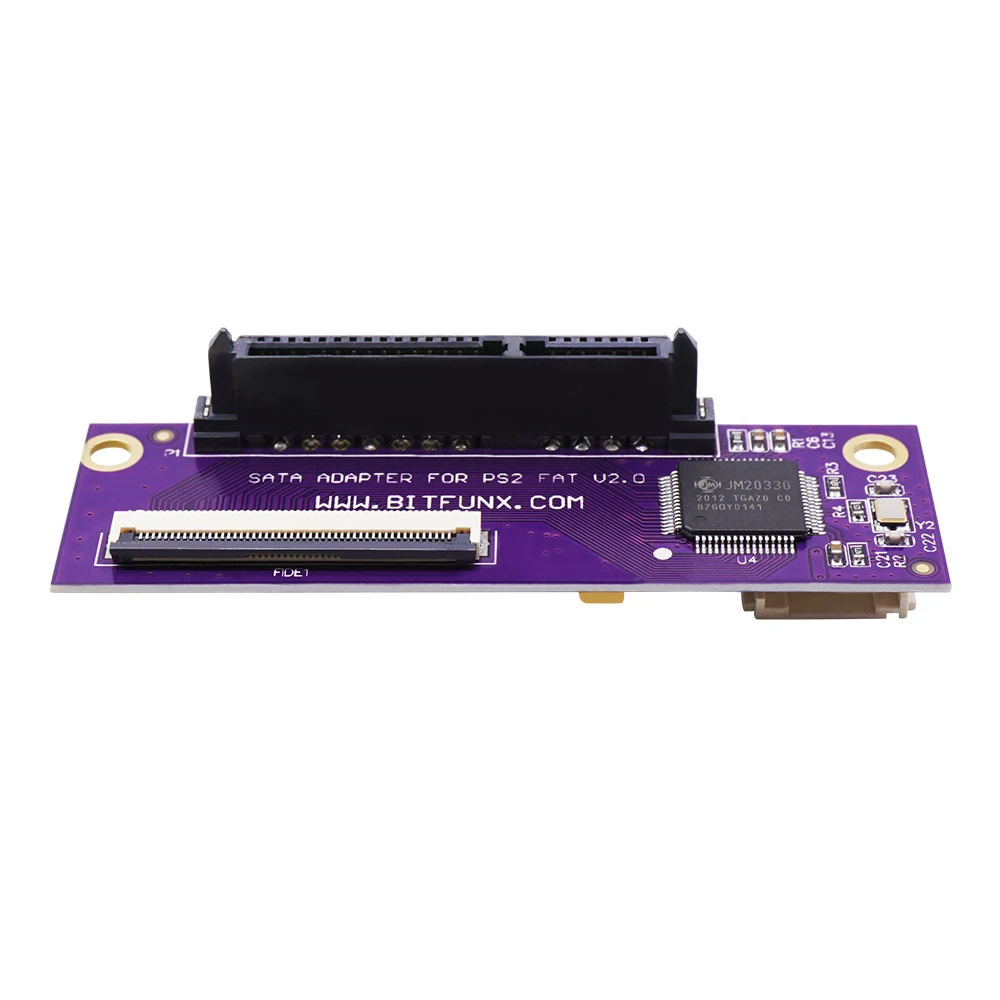

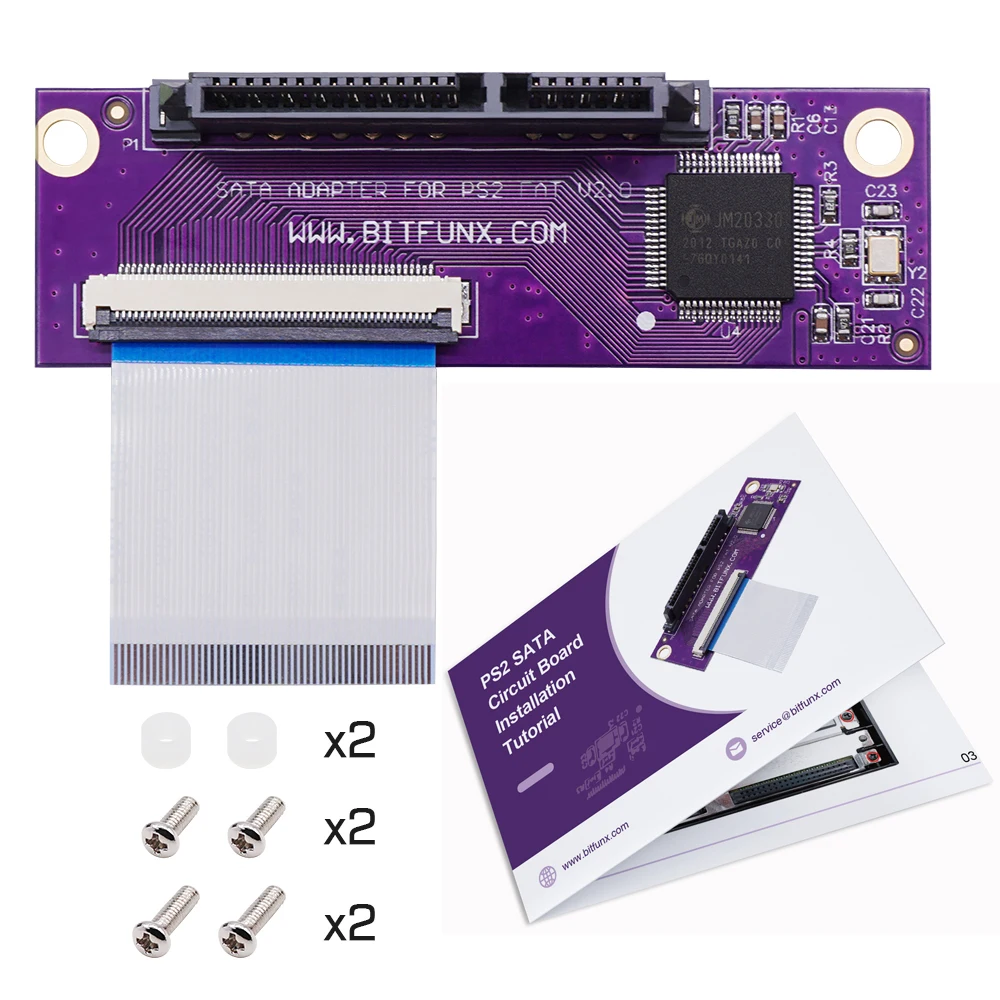

SATA Adapter Port Kits for PS2 IDE Hard Drives original Network Adapter
Features:

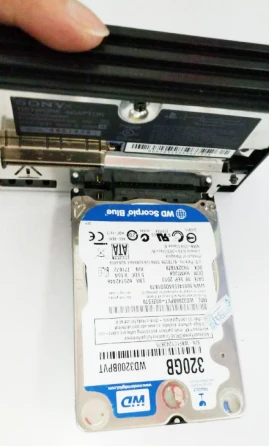

Now we mention that out of the box for Sony’s network adapter only work with the IDE hard drivers, but the IDE hard drivers has been discontinued for many years, its very hard to find a new IDE in the market, it has been completely replaced by the SATA hard drivers. So why do not use faster and large capacity SATA hard drive to replace the IDE hard disk to play PS2 games, it will save a lot of game loading time for us.
Join Us On Discord:https://discord.com/invite/H6v8Y9JRqr
How to install ?
If you need help, please contact us. We can offer technical support.
(Install the SATA circuit board on for sony adapter.)
1. We need to remove the cover from the network adapter. We need two sizes of Philips head screwdrivers to do this, one large and one small. The screws which need to be removed are highlighted below. The two screws in the center of the device require the smaller screwdriver.

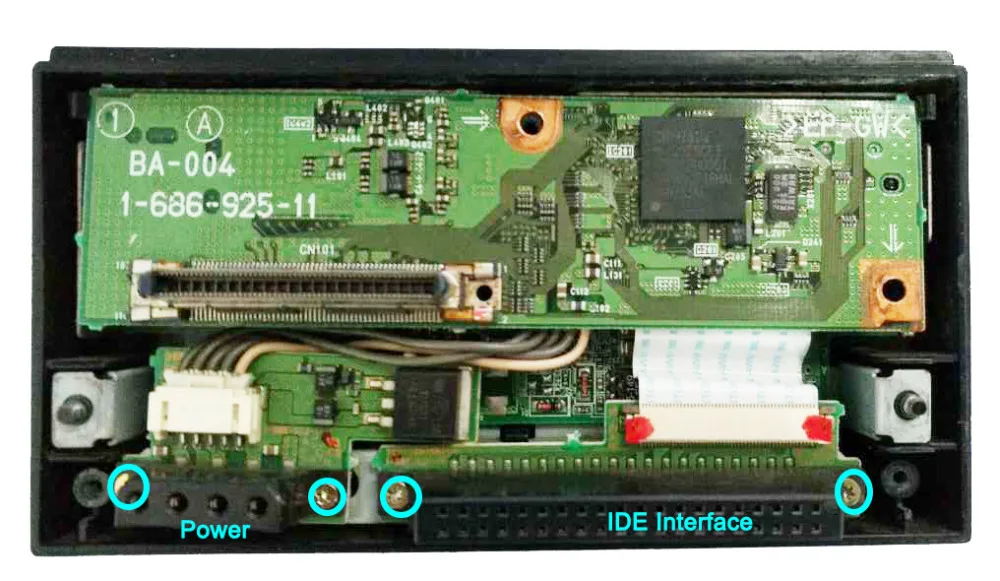

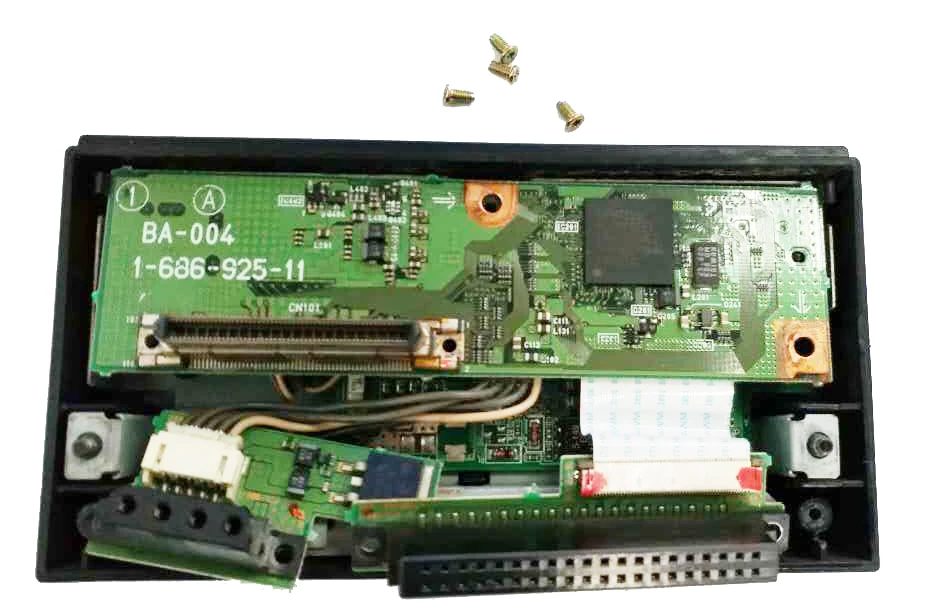

2. Below is what the network adapter looks like with the cover removed. The screws holding the power and IDE connectors are Torx screws, and a size 6 Torx screwdriver will remove them.

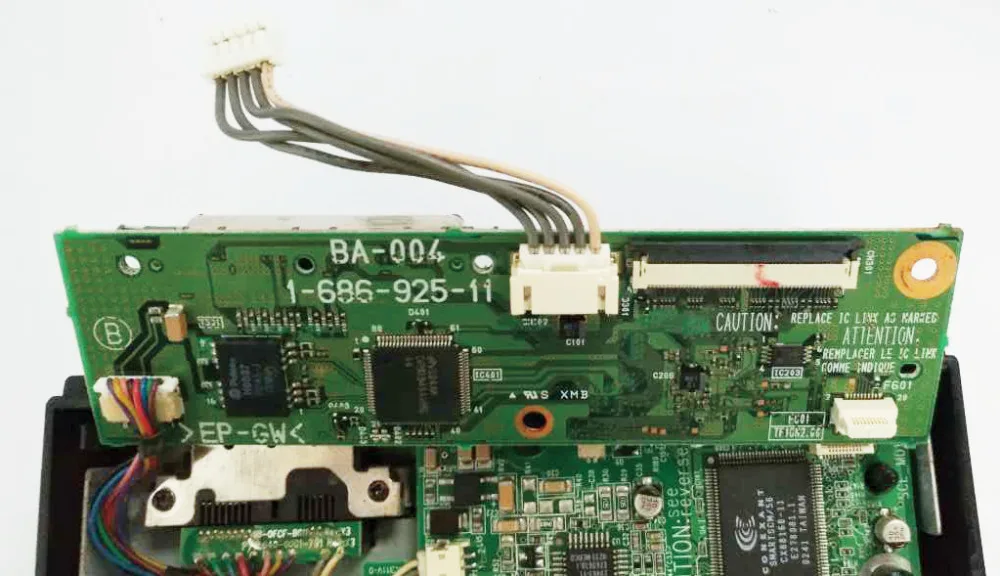

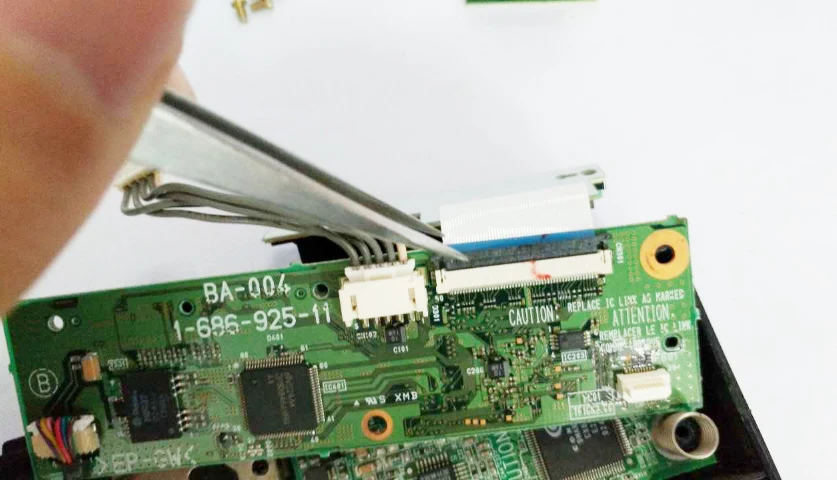

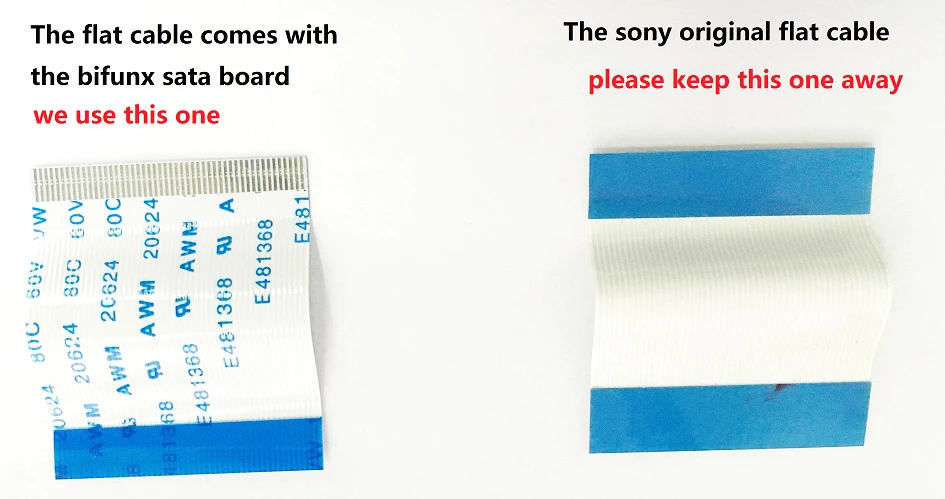

3. Remove the IDE circuit board and the Power circuit board. Please be careful when you remove the FPS flat cable. It is important that we do not use for the SONY IDE FPS flat cable, you need keep for the SONY original flat cable away.

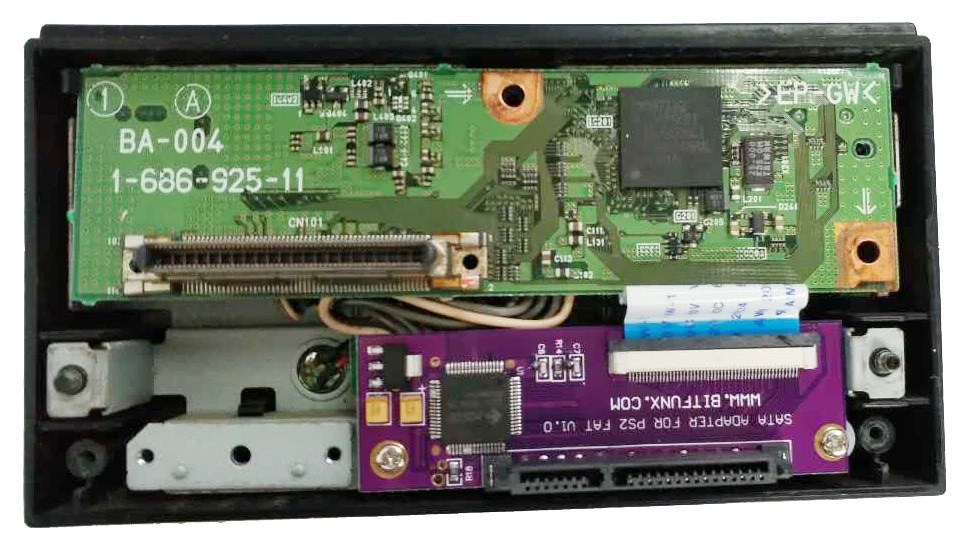

4. Install the BitFunx SATA circuit board. We use the Bitfux SATA board flat cable to connect the board to the network adapter.
5. Use the gasket and screws to make sure that the SATA board fixed stable and suit for good connection to the SATA hard drivers.
6. Assemble the faceplate back.
